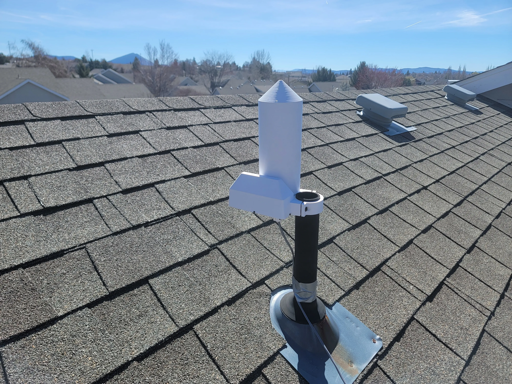

Its a LILYGO T3S3 (a module focused on handheld use) stuck into a housing I modeled myself and 3d printed out of ASA plastic. It has some Chinese “high gain” 915MHz antenna inside the grain silo looking part, which is oversize to prevent too much signal reflection/distortion from the plastic being too close to the antenna. Its powered by 18ga alarm system wire that I draped down the roof to a 5v power supply on the deck. And since I’m renting, non permanent modifications only, thus the clamp to the vent pipe.
Its what I had, just to get started. Quickly realized I needed to be on my roof to get any good connections in my node-sparse area haha.
So far it’s working well, I have 13 consistent mesh connections with 3 direct connections, when before I would previously only get spotty connections to the mesh at all from inside my house.
I’ll buy some better base station hardware later, once I put one up at my girlfriend’s house a few miles away…
I’ve been looking into Reticulum to build a resilient network that includes lora.
Never done meshtastic, but I do a little amateur radio. For a high gain antenna, do you just experiment with where it’s pointing, or do you point towards something in particular?
Depends on the orientation of the gain. Most “high gain” antennas are still omnidirectional, they’re just focusing the signal out into a horizontal ring, like so:
More dB, and you get a flatter donut with more horizontal reach at the expense of vertical reception. Low-gain antennas reception area starts to approach a sphere, so those don’t need to pointed up for best signal as much as higher-gain omnidirectional antennas.
Directional antennas are the ones that need to be pointed at something specific, as they have more of a cone of effect depending on the dB:
Its an omnidirectional “high gain” which is why it’s in quotes.
You can use yagi or dish directionals, but they’re a lot more difficult because 915mhz is fairly low. I’d have to know the location of known good repeaters to know what to aim it at.
hey not for nothing but the clamp to a vent pipe is clever and I’m gonna use it.
Yeah, it’s very easy for anything lightweight or not too tall. Obvs these vent pipes are not anchored super well, but if you’re using something strong like a fence pole and 2 clamps at a time, you could easily hold a 4ft aerial.
My design advice, make the clamp circle the exact size of the pipe you want to attach to. The fixed side (housing) should be an exact half circle. The moving side (clamp) should be less than a half circle such that there is about 1/8" or 3mm gap between the clamp face and the housing side face. That way you get a really nice compression by stretching the plastic when you tighten the screws and it will not slip.
Anything is a dildo if you’re brave enough.
ELIsysadmin?
You mention a node sparse neighborhood. Nodes of what platform?
Im gathering that there is a mesh network being slowly built? I have so many questions and concerns. What are we sharing and isn it bridged to the web and how are we isolating and securing.
A link further down the rabbit hole would be fine.
EDIT I’m an idiot and realized from the community name this is meshtastic. Rabbit hole here I come.
Just note that many countries and cities are moving away from meshtastic to meshcore (same hardware, better protocol) due to scaling issues inherent in meshtastic
Australia is pretty much entirely meshcore apart from some abandoned derelict meshtastic nodes
I did see meshcore before I got into this stuff, but my issue is meshcore seems less resilient in lower density areas where there may not be many people investing in well positioned base stations. Almost all my typical use cases are very rural, where every possible node contact matters, and I do not have the money or physical access to set up enough of my own good base stations.
Meshcore nodes can all repeat messages now for the very circumstance you describe
This was a recent enhancement
Haha, you have stumbled right into the nerd trap. Guessing you’re here from the All page.
This is a community (!meshtastic@mander.xyz) for the Meshtastic project, a short instant messaging system via a mesh network built on unlicensed LoRa embedded radio hardware. Designed for pure peer to peer mesh networks to run totally off grid and allow local communication even when regular infrastructure goes down. They are very low power and the hardware is very inexpensive (the actual device inside this station cost less than $30) meaning many nodes can be deployed for network resilience.
Im not clear on what the network is used for
That’s fun the part - it’s used by nerds testing the network, sending “ping”. And others replying and setting up BBS systems.
Like…the old school BBS stuff? I thought there was texting and maybe email? Not sure as I am learning too. I’ve used BBSes in the past.
Meshtastic is basically just texting, but there are nodes people setup for BBS purposes.
Its messaging. Think SMS but local mesh. I’m going to use it for weather stations and being goofy with friends, but it’s also resilient in case the internet goes down, I’ll still be able to talk to other mesh users.
You should totally paint that thing to look like a little barn and grain solo 😆
unironically I have red, white, black, and brown ASA available to me, and a multicolor Bambu printer… Hmmmm
Some inspiration: https://www.australiansiloarttrail.com/
You got my uovote before I even read the post, just for “blackjack and hookers”.
Party on Bender!
Get a 1W RAK!
Considering! Are those booster modules us legal?
US-legal yes. We use them in Canada as well but I haven’t checked if they’re legal here. They can be configured to tx at lower power. Their rx stage is also more sensitive so they’re approx balanced with the 1W tx.
Is it grounded in any way? That thing is screaming Thor’s name in that pic.
Not really? I guess the device is probably grounded via the negative wire but the casing is plastic and it’s not remotely the tallest thing in the neighborhood. Hell it’s not even the tallest thing on my roof. And there’s a mountain right behind me.
Have you never seen Casshern, mountain tops are geographically directly above you, and some dramatic character can just drop a comic book lightning bolt straight down and hit you
It’s Dark Souls 2 geography rulesMy god, you’re right, I will invest $500 in a full size lightning rod system asap
